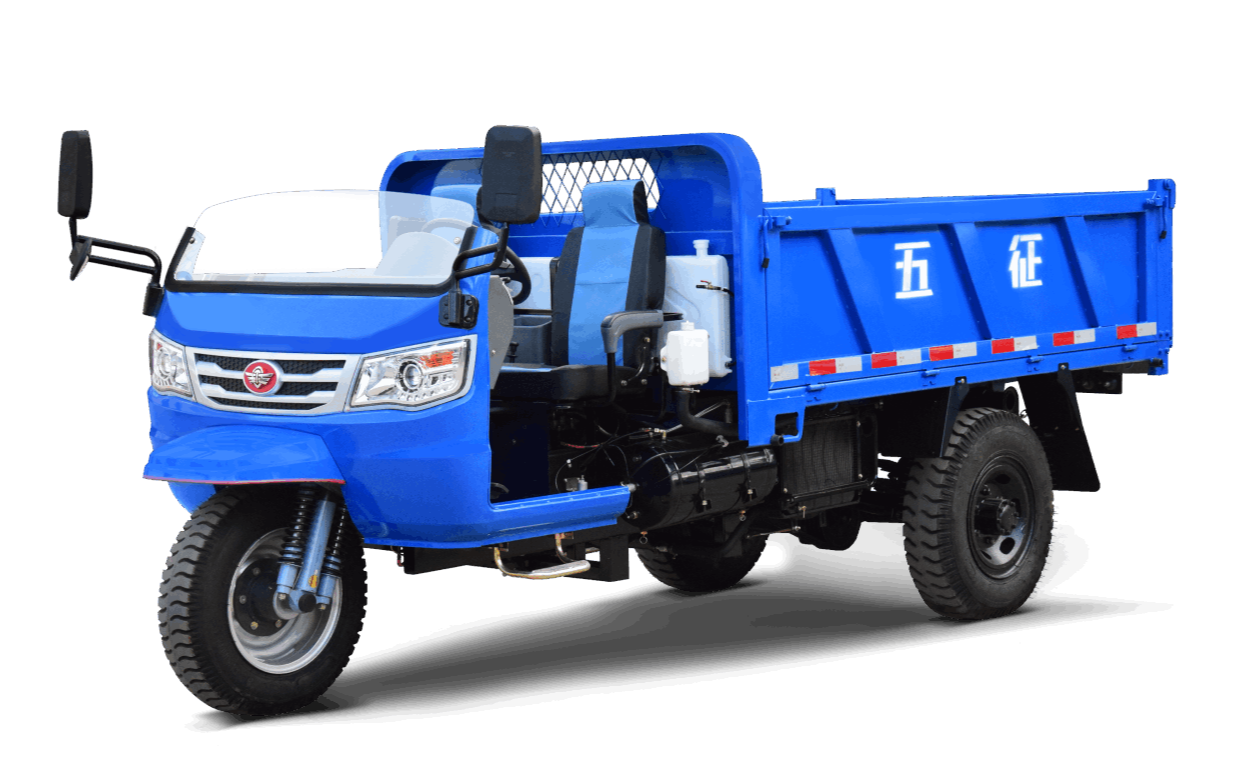

D1500
With a high-strength steel frame construction, our vehicle balances lightweight design and exceptional load-bearing capacity for agility and durability.
Reliable performance
Lightweight design
Exceptional load-bearing capacity
-

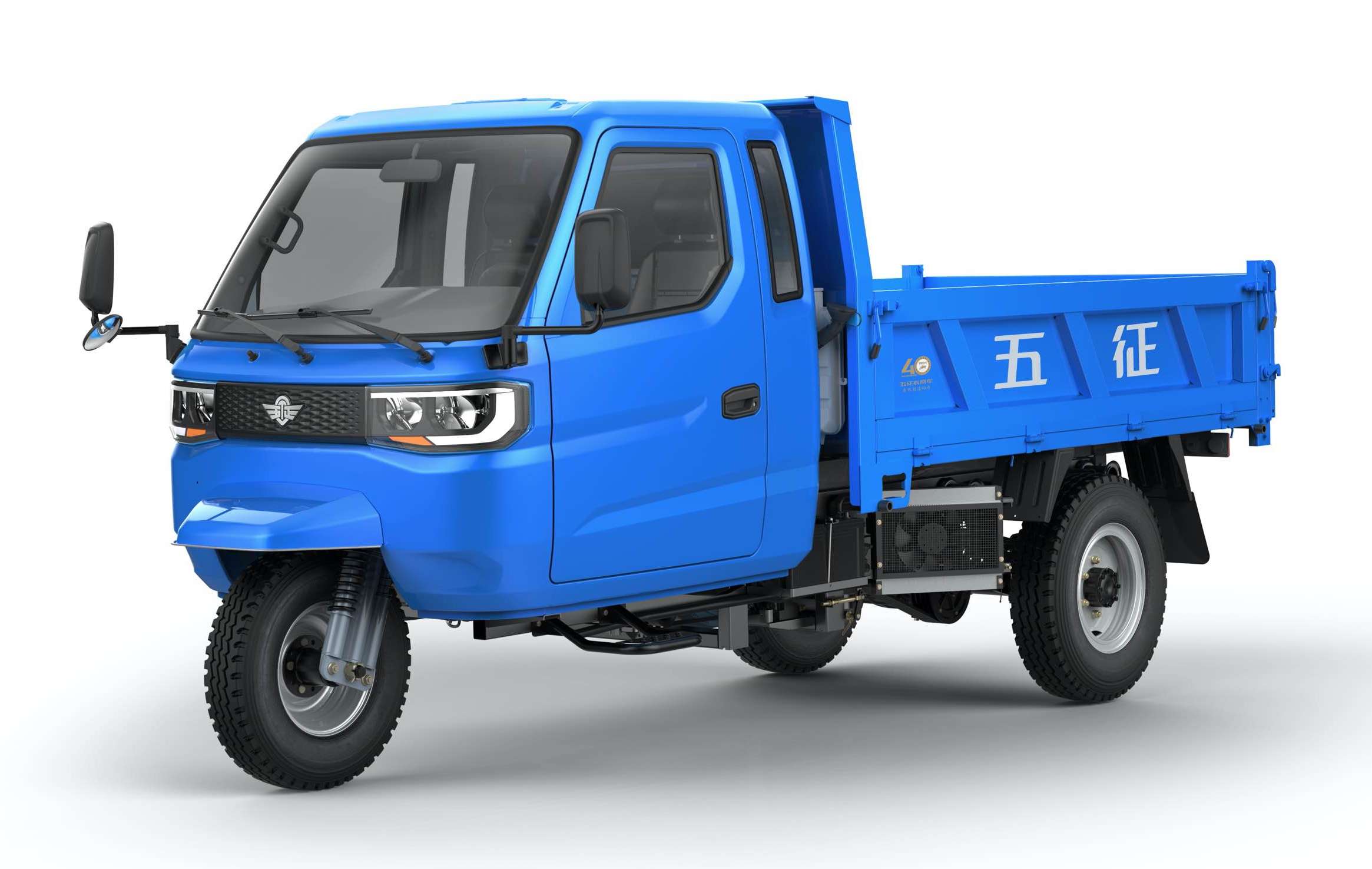

V1600
Heavy-duty vehicle with a lower loading platform to facilitate easy loading and unloading
Low cargo platform
Exceptional load-bearing capacity
10 gear transmission for Improved hill climbing performance
-
Diesel engine
With 170 beam steel frame, the entire vehicle is lighter in weight and features a stronger carrying capacity.
It is equipped with an external motorized cooling system to control water temperature within a reasonable range.
This advanced model has a full set of high-precision process (such as 3D modeling design, finite element structural and mechanical analysis, full sequence molding, etc.) to protect accuracy and quality. Guaranteed power.
-
Diesel engine
It uses Aoxiang 1600 luxury type one-and-half row body. The entire vehicle is designed to be compact.
195 channel steel external span frame, low platform design for easy loading and unloading of goods.
The rear axle features a 10-gear design for greater carrying capacity.
24, 25, 28, 32 engines available.
External cooling system, MP3, reverse camera, electromagnetic drip, recirculating ball steering and other features are optional for high-end models.
-
D1500
-
V1600
Efficient transportation solutions for users worldwide
Use scenarios
Technical specification
-
D1500
-
V1600
-
Engine model
-
External contour dimensions
-
Wheeltrack
-
Wheelbase
-
Front and rear tires
-
Frame form
-
Steering form
-
Shock absorber model
-
Box dimensions
-
Clutch
-
Brake form
-
Dumping method
-
Other configurations
-
-
24HP
-
4208×1540×1745
-
1310
-
2788
-
Front 60016/65016, Rear 75016
-
170 high-strength steel
-
Worm gear/recirculating ball/electric power assistance
-
5658/6058 triple shocks
-
2500×1540×450
-
Mechanical clutch
-
Oil Brake
-
self-unloading
-
simple body, iron sunshade, external cooling, electromagnetic drip
-
-
-
24HP
-
5130×1700×2090
-
1420
-
3580
-
Front 60016/65016, Rear 75016
-
195 channel steel external span frame
-
Worm gear/recirculating ball
-
6058 triple shocks
-
2800×1700×500、3000×1700×500
-
Mechanical clutch
-
Power oil brake
-
hand-controlled hydraulic lifting and lowering
-
optional external cooling system, MP3, reverse camera, electromagnetic drip, recirculating ball steering, etc.
-
Expand All
Collapse
Related products
-
Agricultural industry
Primarily designed for daily rural family life, it is mostly used for bringing crops in from the fields or for transporting fruit and vegetable to greenhouses during the busy season.
Read more
-
Construction and infrastructure industry
This model pairs a single-cylinder engine with a semi-enclosed body, and is primarily for commercial operation. The low-speed heavy-duty type is mainly used for carrying wood, plates, grain, etc. The low-speed light-duty type is mainly used for transporting fruits and vegetables. Included: Semi-enclosed and fully closed models have a trunk length of 2.5 meters and longer (including awning, simple shed and full-shed vehicles).
Read more
-
Logistics and supply chain industry
This model pairs a multiple-cylinder engine with a fully enclosed body, and is primarily used for commercial operation. The high-speed heavy-duty type is mainly used for carrying wood, plates, grain, etc. The high-speed light-duty type is mainly used for pulling fruits, vegetables, tobacco, alcohol and foodstuffs. Included: Aoxiang, Lingyu multi-cylinder series products.
Read more
