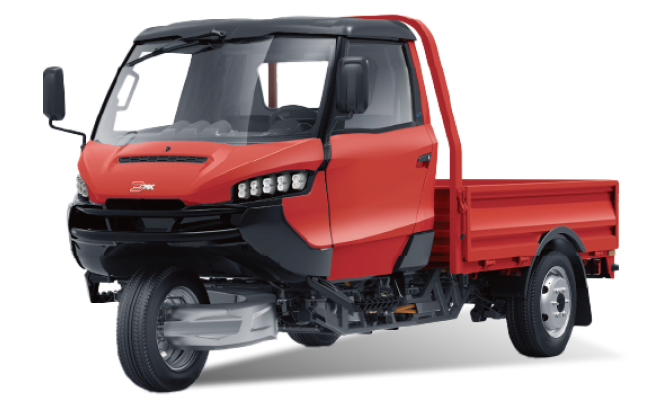

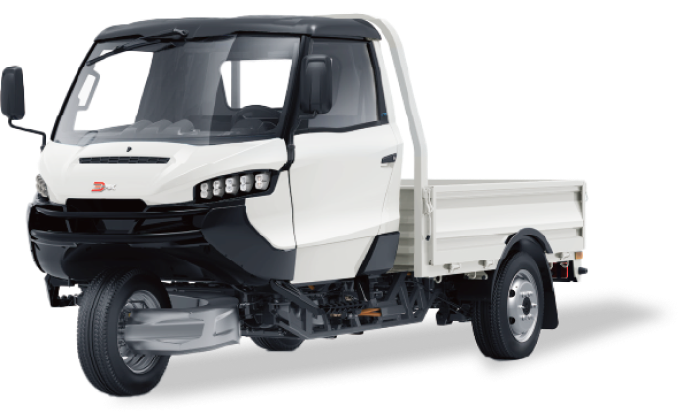

3MX EV

Leading the way in green logistics, the 3MX EV sets a new standard with its exceptional load carrying capabilities, powerful electric motor performance, stylish design, and versatile version configurations to meet all your logistics needs. Experience the future of sustainable transportation with our cutting-edge vehicle.

Do you need any help?

3MX EV

Available in a variety of color models

Ice white

Blaze red

River blue

01

Readily available configurations from OEM

  • dd0_img19.jpg

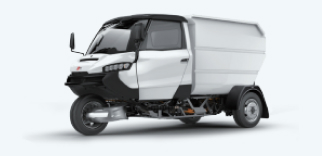

    Sanitation version

  • dd0_img20.jpg

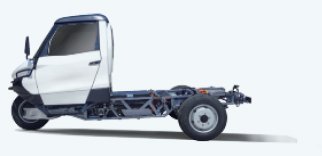

    Chassis version

  • dd0_img21.jpg

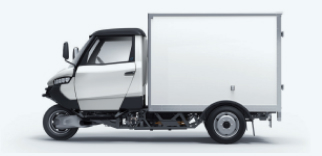

    Box version

  • 31.png

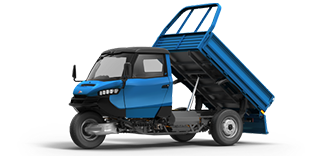

    Tipper version

  • dd0img22.jpg

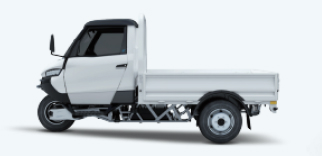

    Pick-up version

Highlights&Feathers

  • dd0img08.jpg

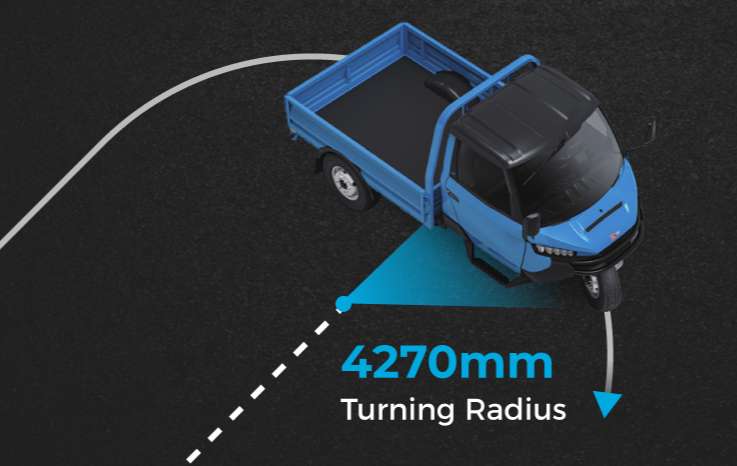

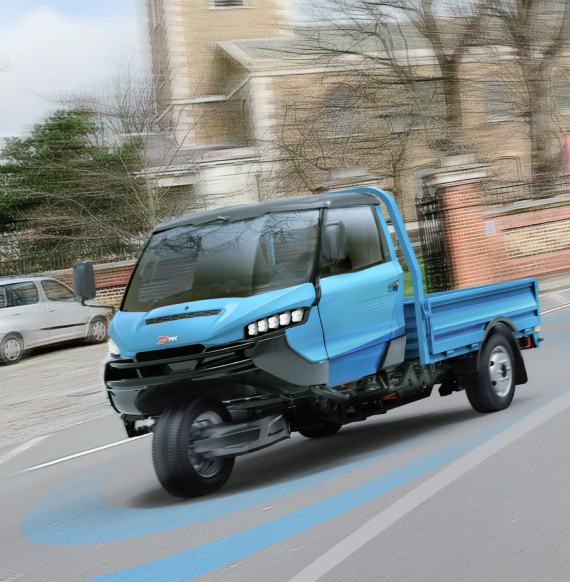

    Flow with the city

    Small turning radius for maneuvering through tight roads.
    1. Small turning radius for easy handling.
    2. Suitable for navigating streets and warehouses.
    3. Small footprint with substantial loading capacity.
    4.Optional Rear parking sensors and cameras for easier parking and maneuvering in narrow area.

    • 4270
      mm

      Turning radius

    • 69
      km/h

      Top speed

    3MX pick-up shown with custom blue paint, not available for purchase *under WLTP conditions **with no payload. Gradeability is 22% at full payload.

  • dd0img06.jpg

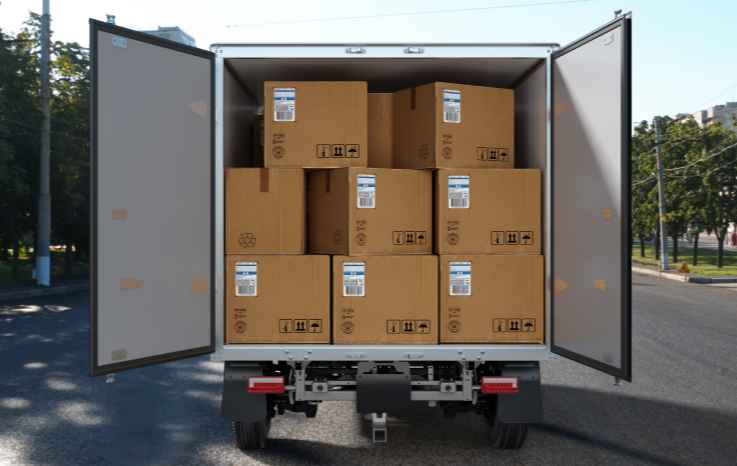

    More space, less waste

    Whether closed cargo box, pick-up or tipper, 3MX has big space to carry more in less trips. With up to 830kg payload, 3MX will impress you with its productivity. The closed cargo box is dent and corrosion resistant fiber-glass while holding a generous 5.33m³ in volume. Pick-up includes a polymer bed coating and 3 way folding sidewalls, which fits 1 euro pallet.

    • 830
      kg

      Payload

    • 5.33

      In volume

  • dd0img05.jpg

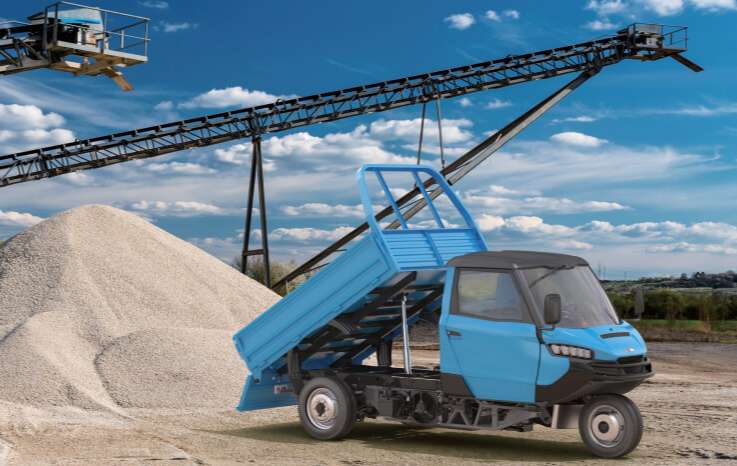

    A ton of uses

    With a total mass capacity of 1,000 kilograms (chassis), it is suitable for various applications such as logistics and distribution, garbage and construction transportation, and supermarket vending. The eye-catching styling gives your business the attention it deserves.

    • 1.000
      kg

      Total capacity

  • dd0_img10.jpg

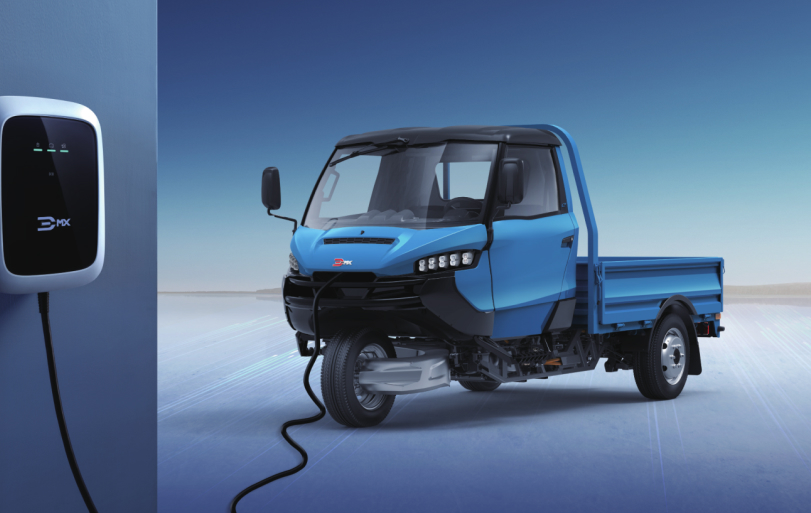

    Pure electric

    Zero-emission and up to 168 km* of electric range, 3MX charges in Europe at any home or business socket without the need for special char gers or electrical infrastructure. Regenerative braking helps to maximize range in the city, while the powerful motor allows climbing up to 35% grade**. 20kWh Lithium battery pack has a 5-year warranty, while surrounded by steel frame to enhance safety.

    • 168
      km

      Electric range

    • 20
      kWh

      Lithium battery pack

    3MX pick-up shown with custom blue paint, not available for purchase
    *under WLTP conditions
    **with no payload. Gradeability is 22% at full payload.

  • dd0_img09.jpg

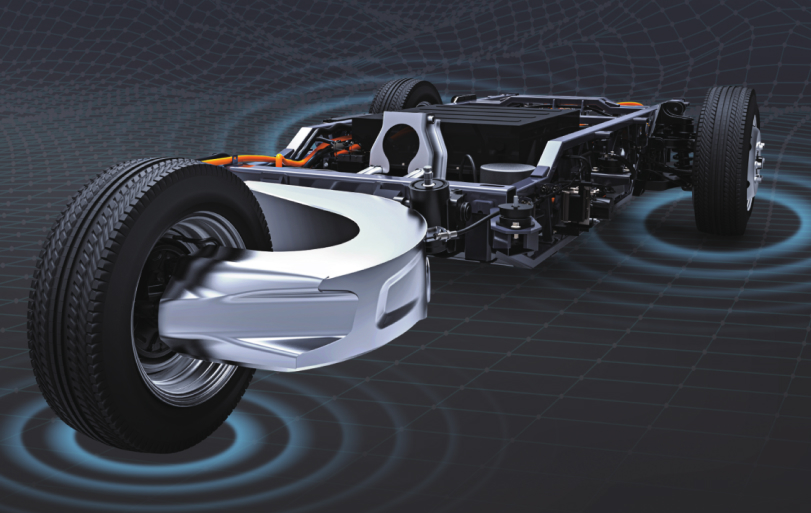

    Feet on the ground

    The world’s first production Electronic Roll Mitigation for a 3-wheel, with Stability Control. Let’s you drive with confidence and freedom while keeping you and your cargo safer even when loaded fully. Energy absorbing front swingarm and steel bumper help to reduce the effects of front collision.With sensors constantly monitoring roll acceleration and steering , Electronic Roll Mitigation assists roll stability by braking the 3 wheels independently, especially in turns and high center of gravity loads.

    • 168
      km

      Electric range

    • 20
      kWh

      Lithium battery pack

    3MX pick-up shown with custom blue paint, not available for purchase *under WLTP conditions **with no payload. Gradeability is 22% at full payload.

  • dd0img07.jpg

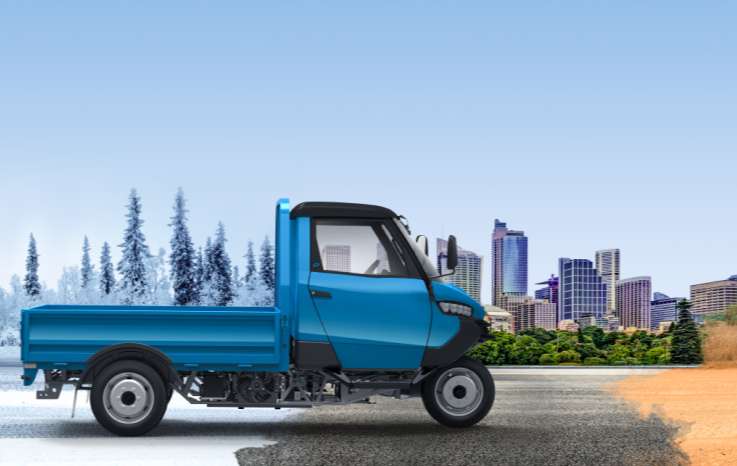

    Take the shortest route

    With high ground clearance of 198.5cm at full payload and an independent suspension, the 3MX goes where other commercial vehicles can' t.Three wheels provide natural articulation for uneven ground while electronic traction control reduces wheel slip in loose terrain.Skid plate protects the battery against rocks and debris.Electric power means staying silent in nature and sensitive areas while you get the job done.

    Double wishbone independent rear suspension keeps impacts isolated while progressive stiffness keeps you comfortable at empty and full load.

    • 198.5
      mm

      At full payload

  • dd0img04.jpg
    Close to home

    Responsive, efficient after sales service and spare parts availability are enabled by a strong and dedicated OEM team in Europe. Whether deliv ering new vehicles, assisting dealers with technical and warranty support or keeping local stock of spare parts, our duty is to keep every 3MX on the road and ready for your next mission. With our global engineering team, we work closely with body building companies to ensure a high-quality and efficient integration.

    • 830
      kg

      Payload

    • 5.33

      In volume

3MX Just what you need

  • dd0_img11.jpg
  • 38.jpg
  • 39.jpg
  • 40.jpg

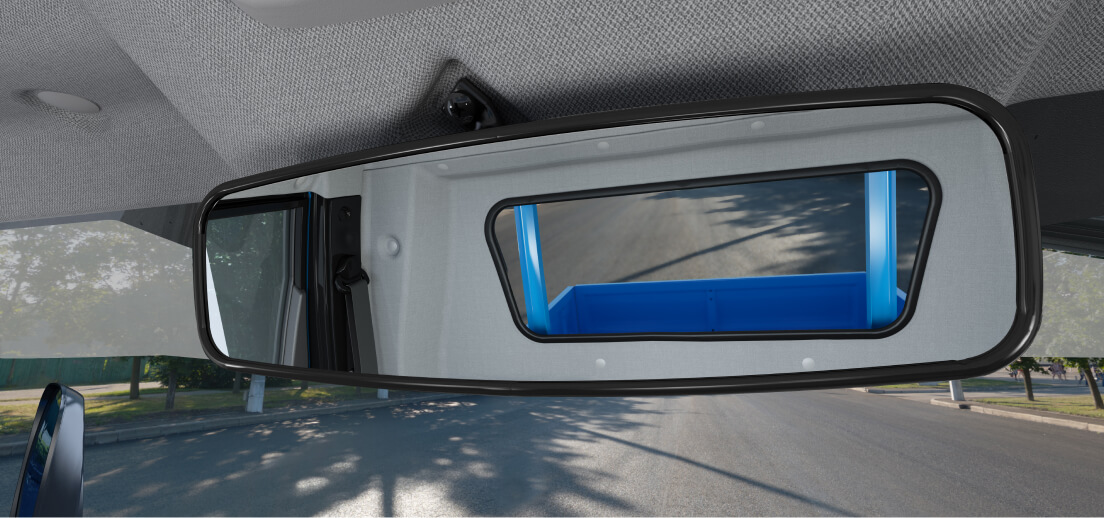

  • Rear view camera mirror
  • Rear parking sensor

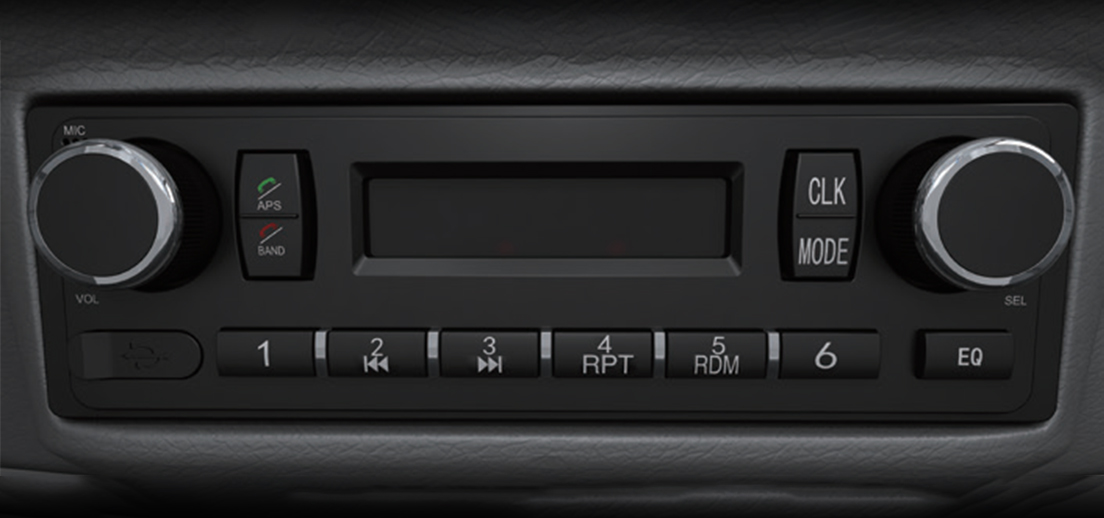

  • Bluetooth Audio System

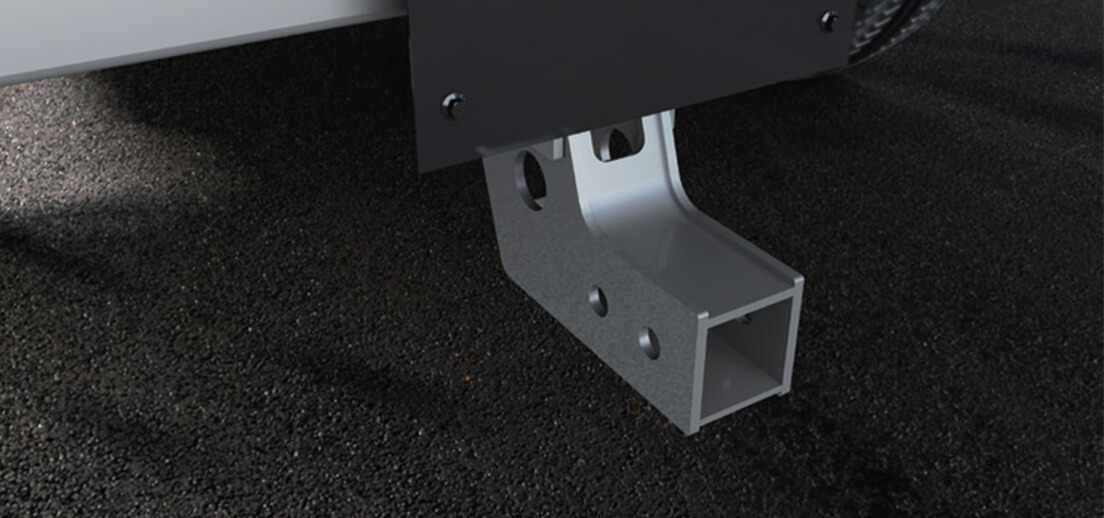

  • Tow hitch
Get a clear view of what's behind for closed box models.
Park with speed and confidence guided by audio alert.
Connect your mobile phone to the audio system with Bluetooth or use USB and AMFM modes.
Increase your carrying capacity by hooking up your trailer with the included tow hitch.

Technology to give you

confidence
  • Standard

  • Optional

    • Regenerative braking

      Recovers energy during braking to recharge the battery so that driving range can be maximized.

    • Electric Power Steering

      Enhances direct feeling from road to the driver while reducing the steering force during parking.

    • Independent Rear Suspension

      Double wishbone independent rear suspension keeps impacts isolated while progressive stiffness keeps you comfortable at empty and full load.

    • Hill Assist

      Helps to prevent rolling backwards when stopped on steep inclines to reduce rear collisions and smoother driving.

    • Enhanced structure for safety

      Energy-absorbing front swing arm and bumper bars and an encased battery pack reduce the effects of collision.

    • Electronic Roll Mitigation

      With sensors constantly monitoring roll acceleration and steering , Electronic Roll Mitigation assists roll stability especially in turns and high center of gravity loads.

    • Anti-lock Braking System (ABS)

      Helps you maintain control and stop in shorter distance during emergency braking and slippery road conditions.

    • Stability & Traction Control

      Designed to keep you moving through mud, dirt and snow by preventing excessive wheelspin, helping you to stay on the road, under conditions with reduced traction.

    • Rear parking sensors and electronic rear view mirror

      Get a clear view of what' s behind for closed box models. Park with speed and confidence guided by audio alert.

    • Forward collision warning

      Intelligent radar system helps to reduce accidents by warning you of potential trouble.

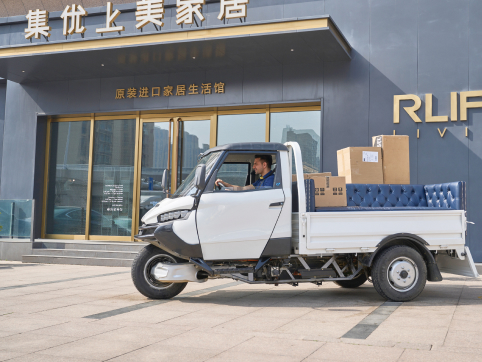

Use scenarios

  • dd0_img15.jpg

  • dd0_img14.jpg

  • dd0_img13.jpg

Technical specification

  • dd_3img0004.png
  • dd_3img0003.png
  • dd_3img0002.png
  • Frame1321319559.png
  • dd_3img0001.png
Sanitation versionChassisBoxTipperPick-up
Overall Length (mm)39953890400039803980
Overal Width (mm)18001800180018301830
Overall Width with rear-view mirrors (mm)19211921192119211921
Overal Height (mm)20401960229019701970
Cargo Length (mm)2220/206520502035
Cargo Width (mm)1650/172016601700
Rear track (mm)15151515151515151515
Wheel base (mm)27502750275027502750
Motor and drive train featuresAC Permanent Magnet Synchronous MotorAC Permanent Magnet Synchronous MotorAC Permanent Magnet Synchronous MotorAC Permanent Magnet Synchronous MotorAC Permanent Magnet Synchronous Motor
Nominal Power (kW/hp)15/2015/2015/2015/2015/20
Maximum Power(kW/hp)30/4030/4030/4030/4030/40
Nominal Torque(Nm)5050505050
Power battery typeLithium Iron PhosphateLithium Iron PhosphateLithium Iron PhosphateLithium Iron PhosphateLithium Iron Phosphate
Power battery capacity(kWh)20.86620.86620.86620.86620.866
Climbing ability(No-load)34.00%34.00%34.00%34.00%34.00%
Climbing ability(Full load)16.00%16.00%16.00%16.00%16.00%
Curb weight(kg)11771347134714471750
Payload(kg)10001000100010001000
Maximum total mass(kg)22522252225223222352
Tire specifications/air pressure(kPa)195R15C/450195R15C/450195R15C/450195R15C/450195R15C/450
Brake formDrum type oil brakeDrum type oil brakeDrum type oil brakeDrum type oil brakeDrum type oil brake
Assistance formElectronic vacuum assistanceElectronic vacuum assistanceElectronic vacuum assistanceElectronic vacuum assistanceElectronic vacuum assistance
Parking formFoot parkingFoot parkingFoot parkingFoot parkingFoot parking
Air-conditioningHeating / Cooling / DefrostHeating / Cooling / DefrostHeating / Cooling / DefrostHeating / Cooling / DefrostHeating / Cooling / Defrost

Technical specification

  • dd_3img0004.png

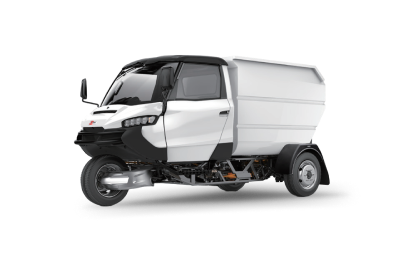

    Sanitation version

  • dd_3img0003.png

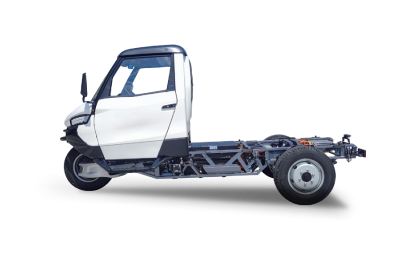

    Chassis

  • dd_3img0002.png

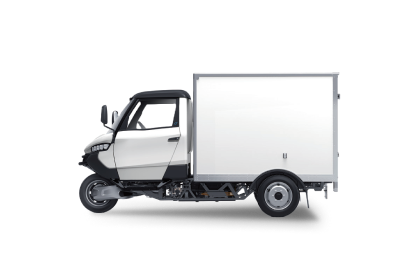

    Box

  • Frame1321319559.png

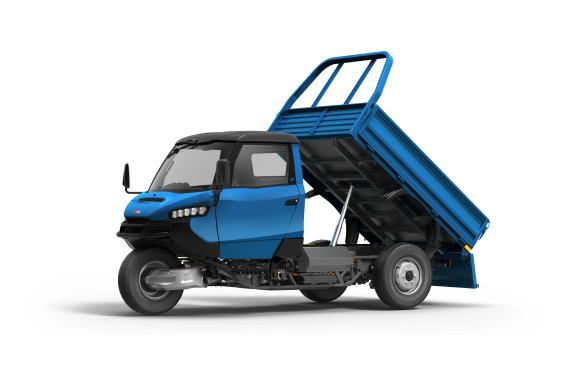

    Tipper

  • dd_3img0001.png

    Pick-up

  • Overall Length (mm)

  • Overal Width (mm)

  • Overall Width with rear-view mirrors (mm)

  • Overal Height (mm)

  • Cargo Length (mm)

  • Cargo Width (mm)

  • Rear track (mm)

  • Wheel base (mm)

  • Motor and drive train features

  • Nominal Power (kW/hp)

  • Maximum Power(kW/hp)

  • Nominal Torque(Nm)

  • Power battery type

  • Power battery capacity(kWh)

  • Climbing ability(No-load)

  • Climbing ability(Full load)

  • Curb weight(kg)

  • Payload(kg)

  • Maximum total mass(kg)

  • Tire specifications/air pressure(kPa)

  • Brake form

  • Assistance form

  • Parking form

  • Air-conditioning

    • 3995

    • 1800

    • 1921

    • 2040

    • 2220

    • 1650

    • 1515

    • 2750

    • AC Permanent Magnet Synchronous Motor

    • 15/20

    • 30/40

    • 50

    • Lithium Iron Phosphate

    • 20.866

    • 34.00%

    • 16.00%

    • 1177

    • 1000

    • 2252

    • 195R15C/450

    • Drum type oil brake

    • Electronic vacuum assistance

    • Foot parking

    • Heating/Cooling/Defrost

    • 3890

    • 1800

    • 1921

    • 1960

    • /

    • /

    • 1515

    • 2750

    • AC Permanent Magnet Synchronous Motor

    • 15/20

    • 30/40

    • 50

    • Lithium Iron Phosphate

    • 20.866

    • 34.00%

    • 16.00%

    • 1177

    • 1000

    • 2252

    • 195R15C/450

    • Drum type oil brake

    • Electronic vacuum assistance

    • Foot parking

    • Heating/Cooling/Defrost

    • 4000

    • 1800

    • 1921

    • 2290

    • 2065

    • 1720

    • 1515

    • 2750

    • AC Permanent Magnet Synchronous Motor

    • 15/20

    • 30/40

    • 50

    • Lithium Iron Phosphate

    • 20.866

    • 34.00%

    • 16.00%

    • 1177

    • 1000

    • 2252

    • 195R15C/450

    • Drum type oil brake

    • Electronic vacuum assistance

    • Foot parking

    • Heating/Cooling/Defrost

    • 3980

    • 1830

    • 1921

    • 1970

    • 2050

    • 1660

    • 1515

    • 2750

    • AC Permanent Magnet Synchronous Motor

    • 15/20

    • 30/40

    • 50

    • Lithium Iron Phosphate

    • 20.866

    • 34.00%

    • 16.00%

    • 1177

    • 1000

    • 2252

    • 195R15C/450

    • Drum type oil brake

    • Electronic vacuum assistance

    • Foot parking

    • Heating/Cooling/Defrost

    • 3980

    • 1830

    • 1921

    • 1970

    • 2035

    • 1700

    • 1515

    • 2750

    • AC Permanent Magnet Synchronous Motor

    • 15/20

    • 30/40

    • 50

    • Lithium Iron Phosphate

    • 20.866

    • 34.00%

    • 16.00%

    • 1177

    • 1000

    • 2252

    • 195R15C/450

    • Drum type oil brake

    • Electronic vacuum assistance

    • Foot parking

    • Heating/Cooling/Defrost
